| Place of Origin: | China |
| Brand Name: | Jwell |
| Certification: | ISO CE UL TUV |
| Competitive advantage: | High quality, high capacity, high stability, worldwide after-sales service, more than 30 years developing experience |
Applications

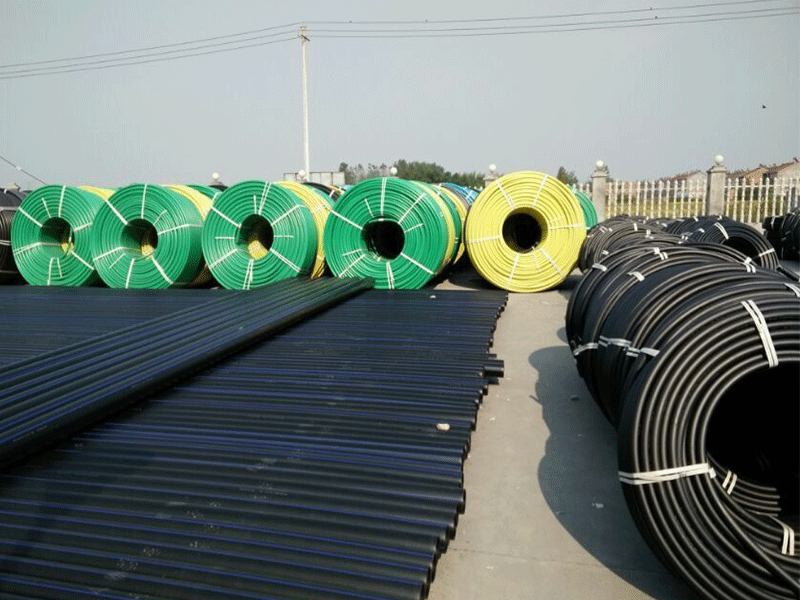

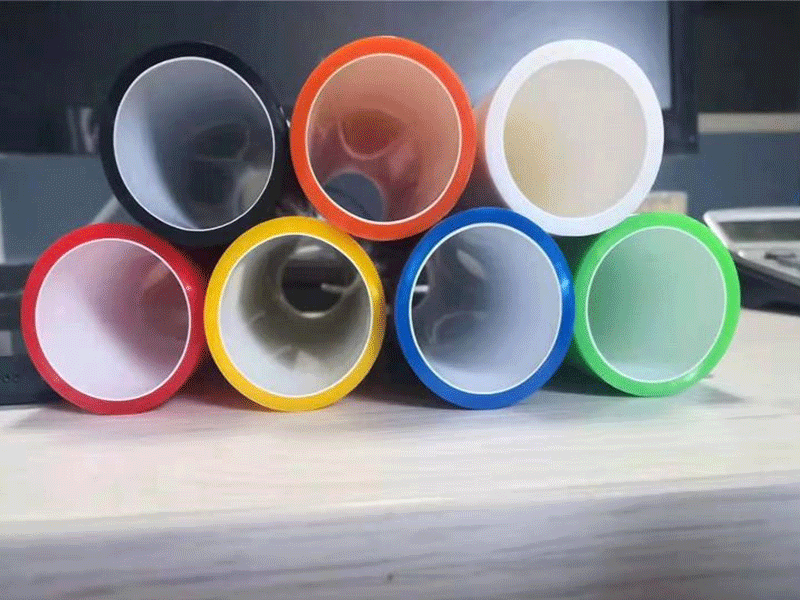

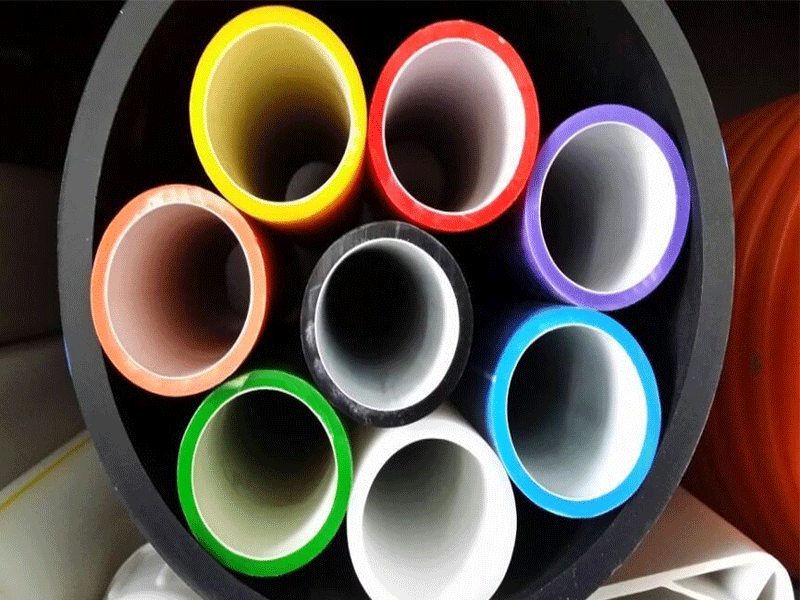

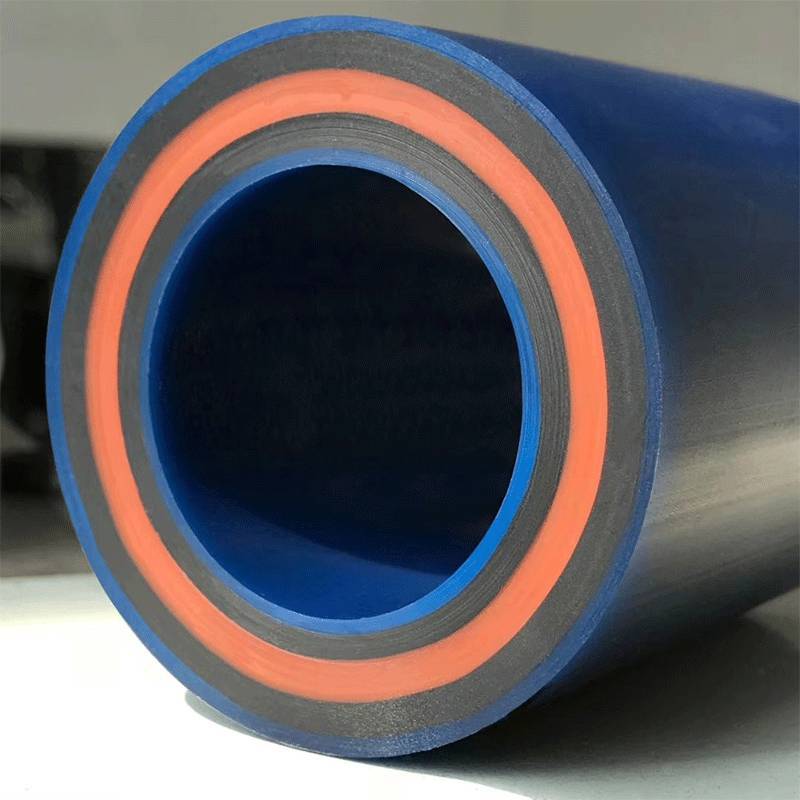

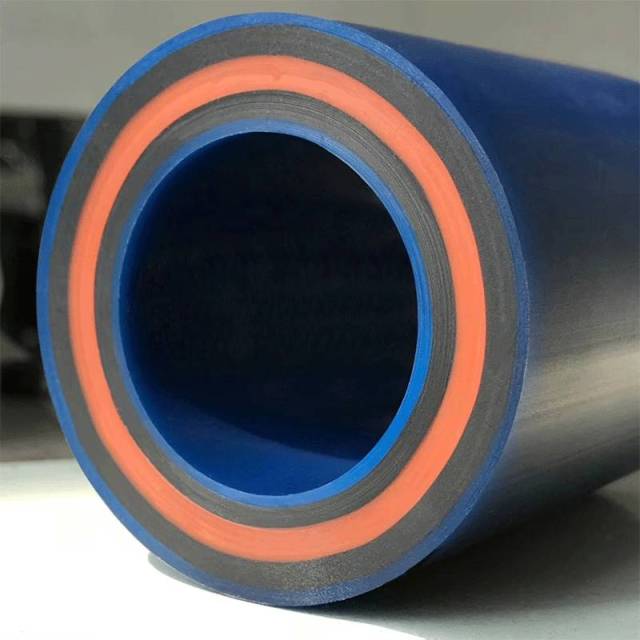

Silicon core pipe is a new type of composite pipe with silicone solid lubricant on the inner wall. It has good sealing performance, chemical corrosion resistance and low engineering cost. It is widely used in optical cable communication network systems on highways, railways, etc.

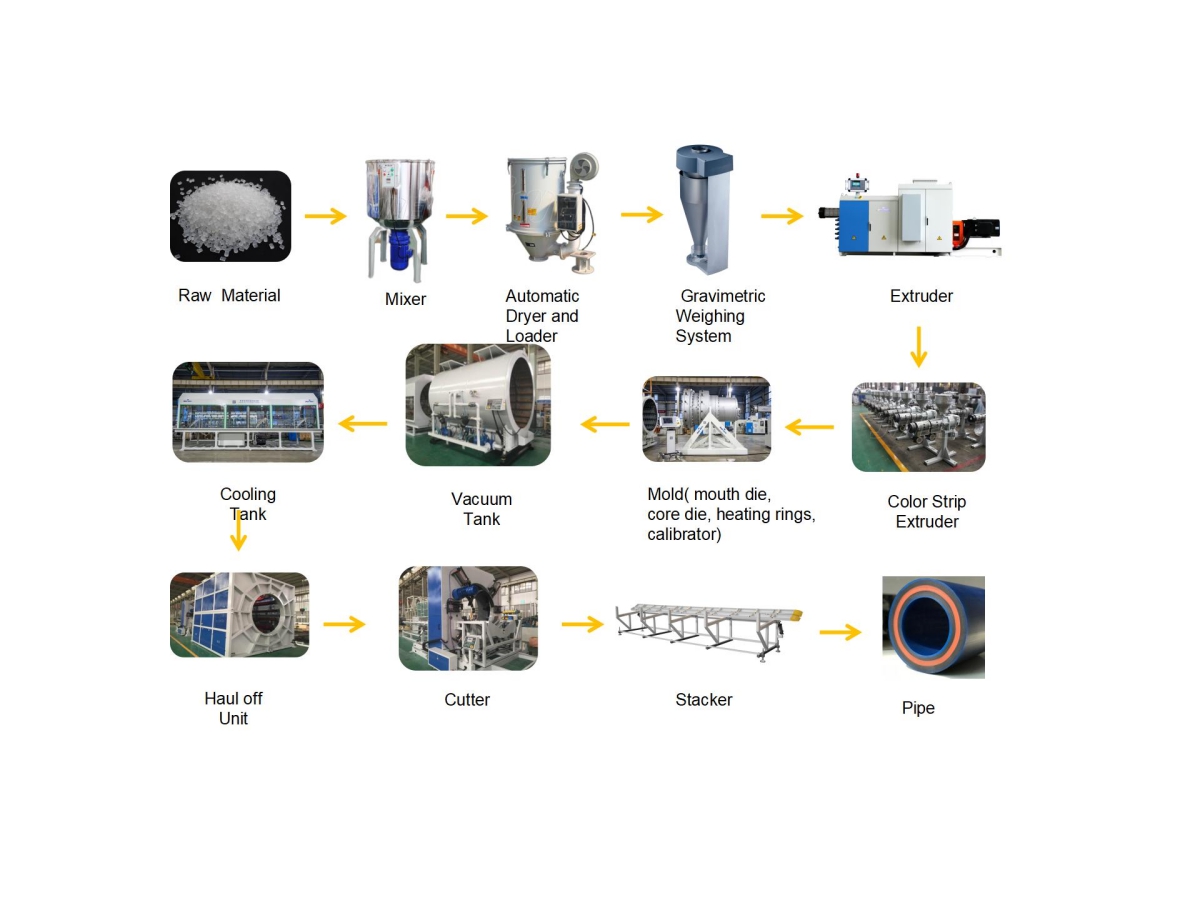

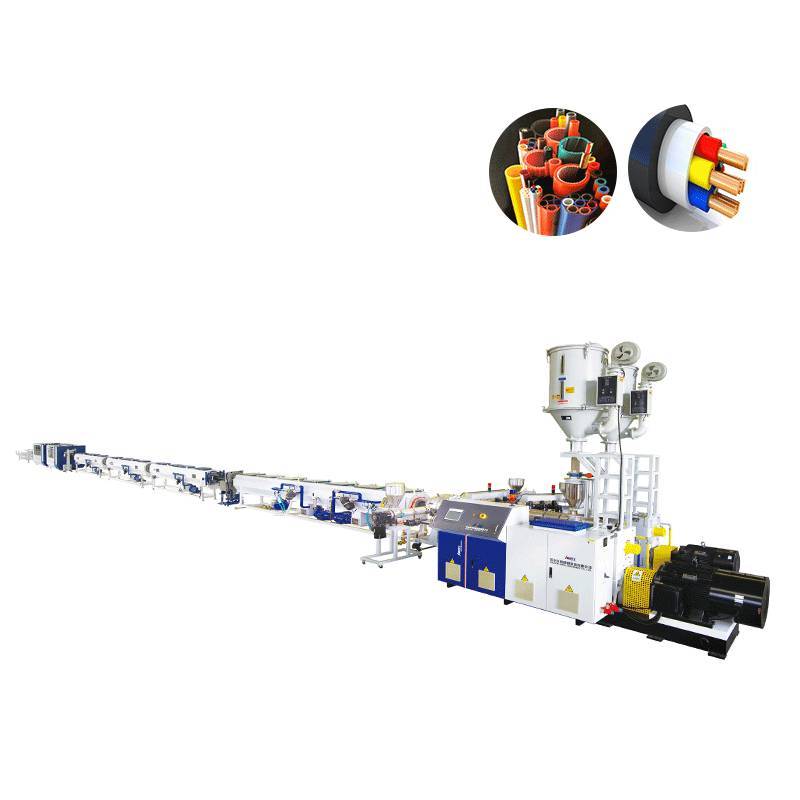

The production line is mainly used two extruders making two layers (adjustable in proportion) or two extruders making three layers (adjustable inside and outside walls) or three extruders making three layers (adjustable inside and outside walls) multifunctional polyethylene water supply and drainage pipe(GB /T13663-2016)
|
Line Type |
Extruder Type |
Pipe Range(mm) |
Max. Speed (m/min) |
Max.Capacity(kg/h) |
|
MFH-F63 |
MFH-60/ MFH-45 |
16-63 |
40 |
250-360 |
|
MFH-F110 |
MFH-60/ MFH-45 |
20-110 |
30 |
300-440 |
|
MFH-F160 |
MFH-60/ MFH-45 |
50-160 |
15 |
360-520 |
|
MFH-F250 |
MFH-75/ MFH-45 |
75-250 |
8 |
450-640 |
|
MFH-F315 |
MFH-75/ MFH-45 |
110-315 |
6 |
520-740 |
|
MFH-F450 |
MFH-75/ MFH-60 |
160-450 |
2.4 |
620-880 |
|
MFH-F500 |
MFH-90/ MFH-50 |
160-500 |
2.4 |
700-1000 |
|
MFH-F630 |
MFH-90/ MFH-50 |
315-600 |
1.2 |
840-1200 |
|
MFH-F800 |
MFH-90/ MFH-60 |
400-800 |
1 |
980-1400 |
|
MFH-F1000 |
MFH-90/ MFH-75 |
500-1000 |
1 |
980-1400 |
|
MFH-F1200 |
MFH-120/ MFH-60 |
630-1200 |
0.8 |
1100-1600 |
|
MFH-F1600 |
MFH-120/ MFH-75 |
1000-1600 |
0.6 |
1250-1800 |
|
MFH-F2000 |
MFH-120/ MFH-90 |
1200-2000 |
0.5 |
1300-2000 |

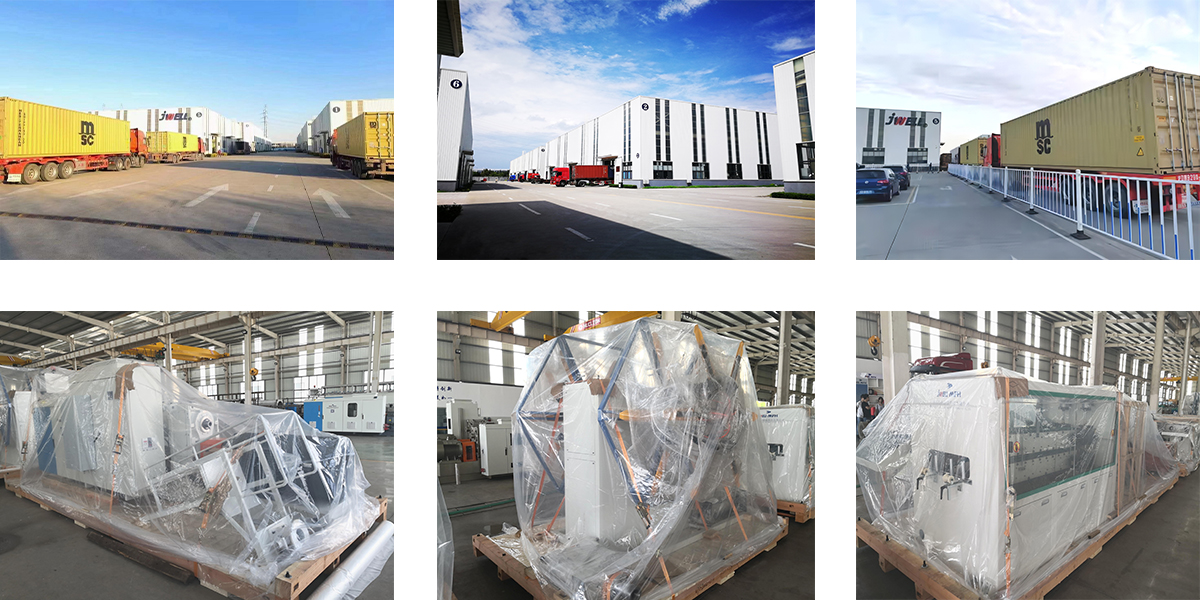

Shipment
